Models · Undercounter refrigerator
Sub-Zero UC-24C Undercounter Combination
A refrigerator and a freezer in one undercounter cabinet, each with its own control; the UC-24CI adds an automatic ice maker.
- Signed
- Dean Halvorsen
- Bench
- sealed systems and airflow
- Years at it
- 19
- Holds
- EPA 608 certified
- Checked
- September 2026
At a glance
- What the letters say
- UC for undercounter, C for combination refrigerator and freezer; a final I marks the ice maker
- Settings
- Separate controls for each half; the factory presets are 38°F (refrigerator) and 0°F (freezer)
- Inside
- Glass shelves and roller wine racks with cherrywood facing; no utility bin on this model
- Ice, on the UC-24CI
- Eight cubes a cycle, about every two hours
- Condenser
- Behind the kickplate; clean it every three to six months
- The tag
- Inside the cabinet, at the upper left
Checked against Sub-Zero undercounter refrigeration use and care guide · Sub-Zero model number key · Sub-Zero serial tag locations
What it is doing, and what that means
01One half warm and the other where you set it?
If the warm half was just loaded, or the door was left ajar, and it reads normally again the next daySafe to wait
Each half answers to its own control and takes its own time to recover.
If the freezer half stays soft while the refrigerator half holds, with the condenser clean and the door shutCall (425) 321-3414
Separate controls mean the fault can sit on one side only: a sensor, the defrost parts, or airflow inside that half.
If both halves drift warm and the unit runs without restingCall (425) 321-3414
Clean the condenser first, as Sub-Zero asks. If both halves stay warm on a clean coil, what is shared between them is failing.
02Frost, ice or water where it should not be?
If the ice is heavy, the door closes, and the gasket is wholeSafe to wait
Sub-Zero's own remedy: switch the unit off at POWER, work a hair dryer over the ice on its low setting, moving all the time, and towel the water away. Then watch whether it returns.

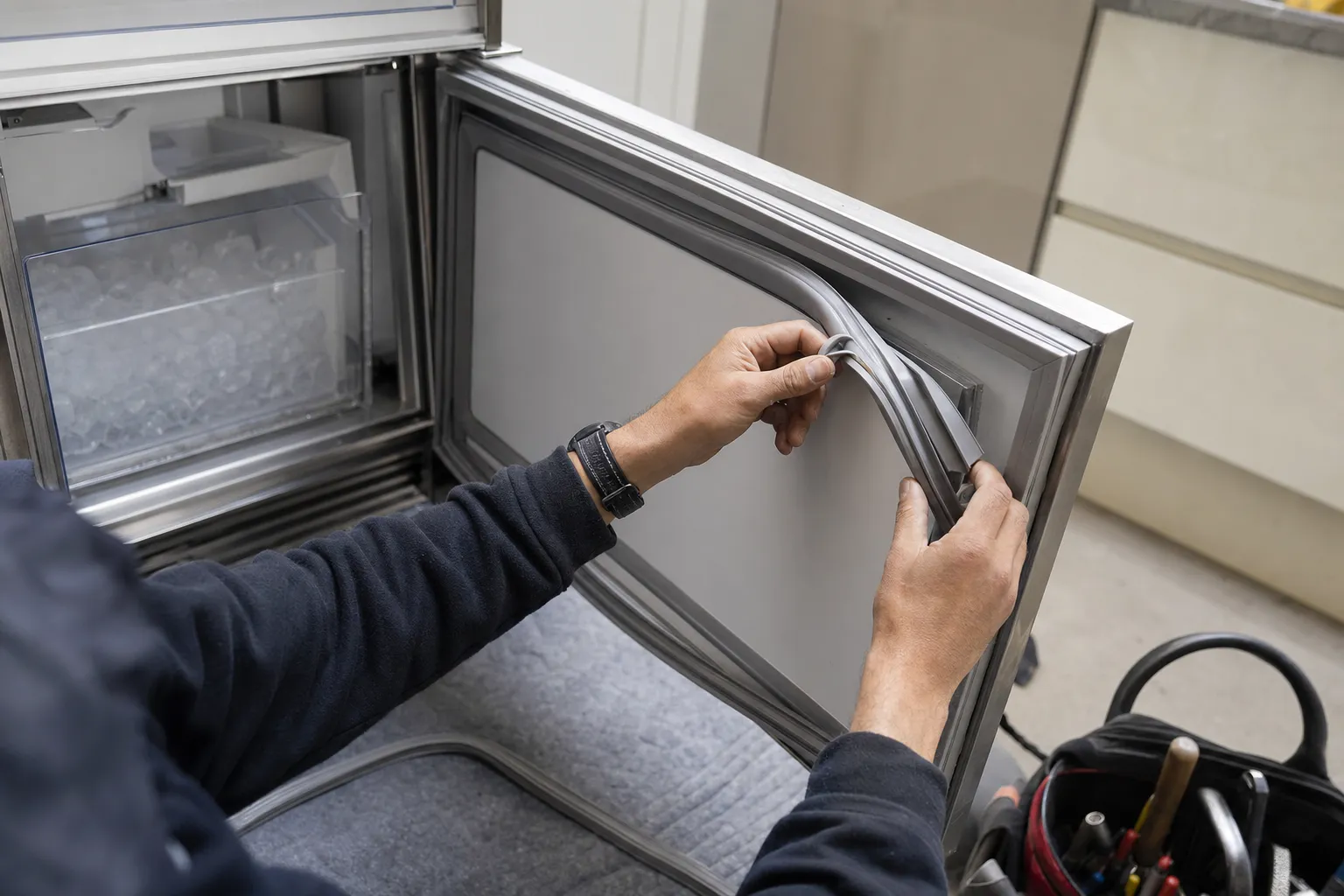

If the gasket is ripped, or heavy ice comes back within days of melting itCall (425) 321-3414
A torn gasket goes to a technician in Sub-Zero's guide, and ice that keeps returning on a good seal is a defrost or sensor question.
Two appliances in one small box
Under one counter, a freezer held near 0°F shares the cabinet with a refrigerator kept well above freezing. Damp air that slips past the seal settles as frost on the coldest surfaces, so the freezer shows trouble first. That is why the price line here is the sensor and defrost band.
The ice as a gauge
On the UC-24CI, hollow cubes point at the condenser; Sub-Zero’s answer to them is a clean. Ice-maker repairs themselves sit under our ice maker service.
Wait or call: the UC-24C
| What it is doing | Check first | Safe to wait if | Call if |
|---|---|---|---|
| SERVICE flashing | The condenser behind the kickplate; POWER off, then on | It clears and both halves come back to their settings | It flashes again once the coil is clean and the unit restarted |
| Hollow ice cubes (UC-24CI) | The condenser | Solid cubes return within a day or two of the clean | The cubes stay hollow on a clean condenser |
| Refrigerator half freezing food | Its setting; whether the two controls were mixed up | It eases after the setting is corrected | It still freezes at the preset 38°F |
| Frost on the freezer walls | The door closing, the gasket for splits | It stops spreading once the seal is kept | The gasket is torn or the frost keeps growing |
Sub-Zero Repair Woodinville · (425) 321-3414 · phone staffed 24/7 · wine and undercounter calls 8:00 am – 8:00 pm, seven days
The price line to read first
Zone sensor, thermostat or defrost heater $290–$670
On an $89 visit that comes off the repair once you approve it. The full breakdown: Undercounter Repair Cost.
Booked as
Diagnosis and repair of built-in and integrated Sub-Zero refrigerator columns, including sealed-system and defrost faults.
If it is doing something else
Each page forks on what that unit is most often brought to us for, so the answer to a different symptom may sit next door: the Sub-Zero UC-24, the Sub-Zero DEU2450R and the Sub-Zero DEU2450RO. All of them price on the same cost page.
Asked about the UC-24C
- Can I set the two halves of a UC-24C separately?
- Yes. A combination unit has one control for the refrigerator and one for the freezer, and each moves one degree at a time with WARMER and COLDER. From the factory they sit at 38°F and 0°F. If one half ignores its setting, call Sub-Zero Repair Woodinville, (425) 321-3414.
