Sub-Zero ID-24R Refrigerator Drawers
Two refrigerated drawers, 24 inches wide, behind fronts that match the cabinetry: the narrowest all-refrigerator drawer model Sub-Zero lists.
- Signed
- Dean Halvorsen
- Bench
- sealed systems and airflow
- Years at it
- 19
- Holds
- EPA 608 certified
- Checked
- September 2026
At a glance
- Line
- Legacy Designer (formerly Integrated), still in Sub-Zero's current design guide
- Size
- 24 in wide, 34½ in tall, 24 in deep before panels
- Fronts
- Custom panels up to 15 lb per drawer, or Sub-Zero stainless
- The tag
- Inside the cabinet, left of the upper drawer
- Condenser

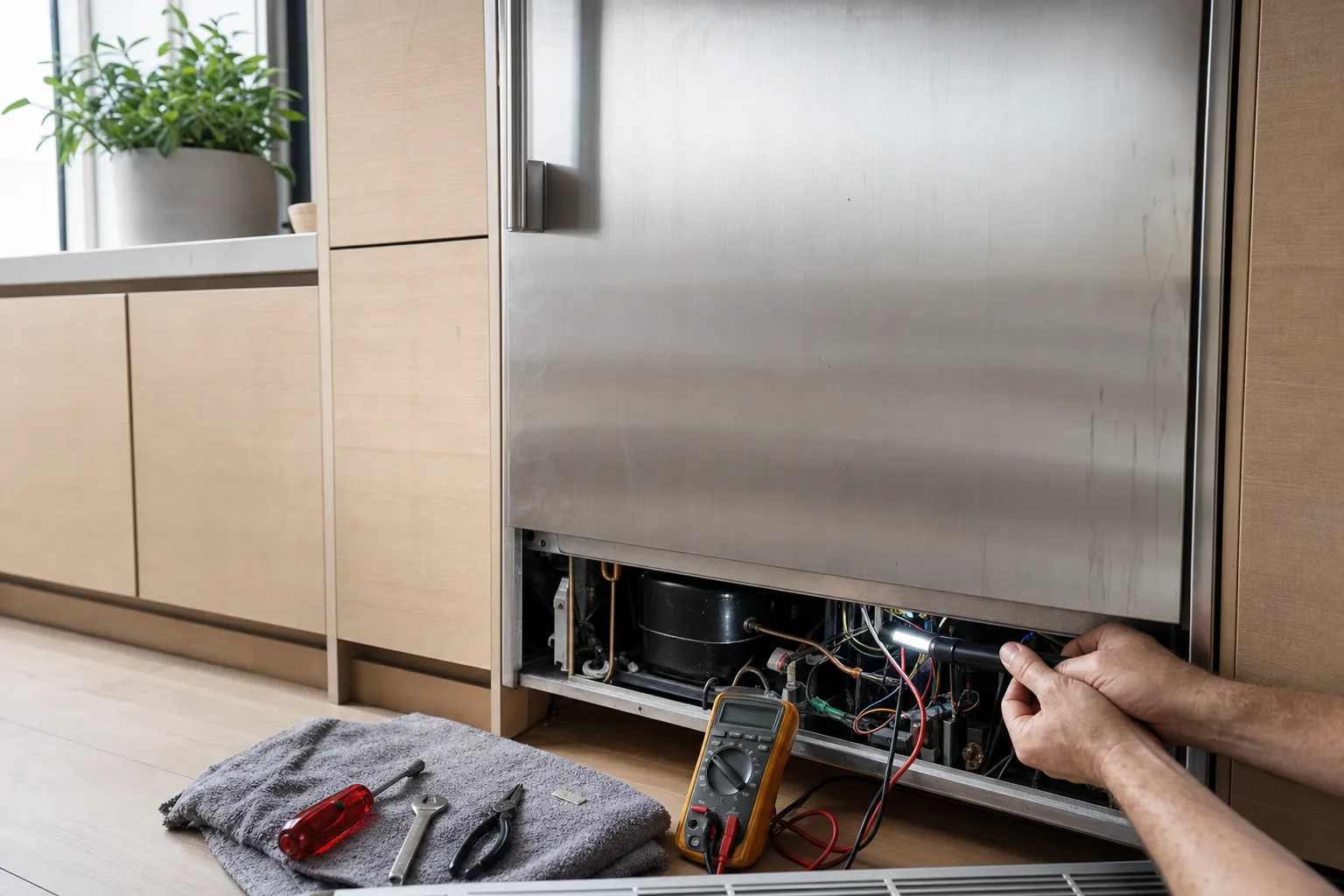

- Behind the kickplate; cleaned every 6 to 12 months
Checked against Sub-Zero Designer refrigeration design guide (rev. 11/2021) · Sub-Zero design guide, current edition · Sub-Zero Designer refrigeration use and care guide · Sub-Zero serial tag locations · Sub-Zero model number key
What it is doing, and what that means
01One drawer warm, the other still cold?
If something has slid to the back and that drawer front sits proud of the otherSafe to wait
Clear it and shut the drawer. A front held a finger's width open lets kitchen air in along its top edge; give it a few hours.
If the drawer shuts flush with nothing behind it and is still warmer than its partner next morningCall (425) 321-3414
With the closing ruled out, the cause is behind the panels: the seal, the air reaching that drawer, or a sensor. Readings decide.
02Frost or water along a drawer front?
If a drawer stood ajar through a long unload and the frost stops growing once it closesSafe to wait
Sub-Zero lists a drawer left open among the first causes. For heavy ice: unit off, a hair dryer on low kept moving, water wiped up.
If the seal is torn or standing off the cabinet, or frost returns with both drawers shutCall (425) 321-3414
Sub-Zero's guide sends a ripped seal to service. Frost that returns on a closed drawer means air is getting past it.
Why the top drawer is different
The two drawers look alike from the kitchen, but Sub-Zero wires the upper one to the control. A sticking top drawer, its seal, or anything lost behind it is our job, not a weekend one.
One drawer against the other
Hold a hand flat inside each drawer. Both slightly warm after a busy evening means nothing yet. One warm and one cold, on a drawer that shuts properly, is worth the visit.
Wait or call: the ID-24R
| What it is doing | Check first | Safe to wait if | Call if |
|---|---|---|---|
| Drawer front not flush | Anything wedged at the back or along the runners | It closes flush once cleared and keeps its cold | It springs back open, or sits crooked with nothing behind it |
| Frost inside a drawer | The drawer closing all round; the seal for tears | It stops building once the drawer closes properly | It builds again with the drawers shut, or the seal is torn |
| Both drawers warm | Lint on the grille at the foot, a hot room, a warm load | They recover within a day of the load or a condenser clean | They stay warm in a cool room with a clean condenser |
| Interior lights out | A drawer left ajar; keep both shut for an hour | The lights return after the hour | They stay out; the LEDs are a service part |
Sub-Zero Repair Woodinville · (425) 321-3414 · phone staffed 24/7 · wine and undercounter calls 8:00 am – 8:00 pm, seven days
The price line to read first
Door seal (gasket), whole perimeter $280–$630
On an $89 visit that comes off the repair once you approve it. The full breakdown: Fridge Drawer Repair Cost.
Booked as
Diagnosis and repair of built-in and integrated Sub-Zero refrigerator columns, including sealed-system and defrost faults.
If it is doing something else
Each page forks on what that unit is most often brought to us for, so the answer to a different symptom may sit next door: the Sub-Zero ID-27R and the Sub-Zero ID-30R. All of them price on the same cost page.
Asked about the ID-24R
- Can I take the upper drawer of an ID-24R out to clean behind it?
- Sub-Zero's guide notes that the upper drawer on its drawer models carries a control cable, which has to be disconnected before the drawer comes out. We treat that as a service step, not a cleaning step. If something has dropped behind it, ring Sub-Zero Repair Woodinville on (425) 321-3414 and book the visit.
